Architecture

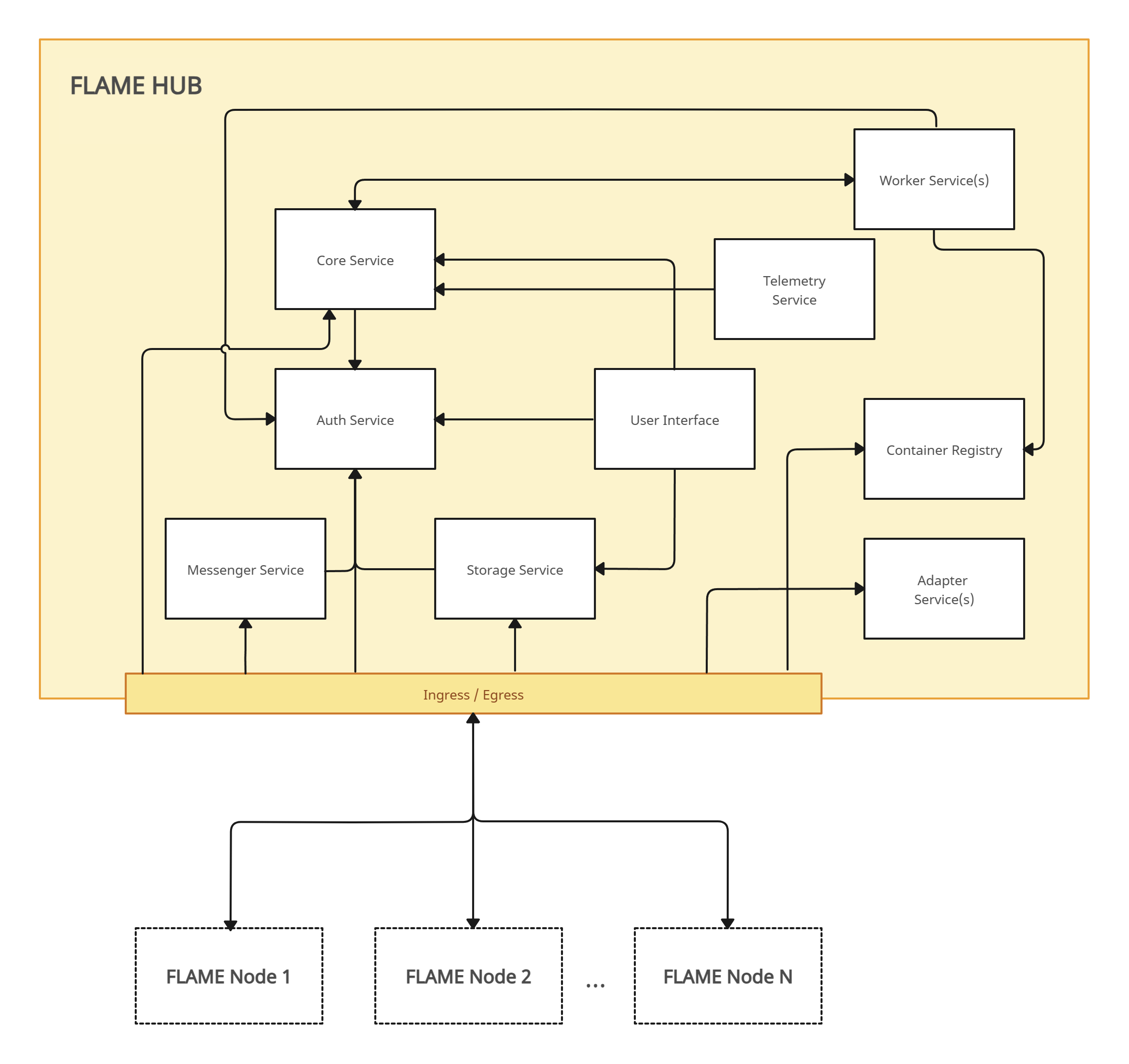

System Overview

External services: Authup (OAuth2), Redis (pub/sub + caching), MySQL/PostgreSQL

Hexagonal Architecture

All services follow a hexagonal (ports & adapters) architecture with three layers:

src/
├── core/          # Domain logic — ports, services, validators
├── adapters/      # External system implementations — database, HTTP, socket
└── app/           # Orchestration — DI modules, wiring, factory

Core Layer

Pure business logic with no infrastructure imports. Contains:

• Entity services — own validation, receive repositories via constructor injection
• Port interfaces — IXRepository, IXService abstractions
• Business services — orchestrate workflows across multiple entities
• Validators — input validation using Zod schemas

Adapter Layer

Implementations that connect domain logic to external systems:

• Database — TypeORM entity definitions, subscribers, migrations
• HTTP — thin controllers that extract requests, delegate to services, and send responses
• Socket — WebSocket handlers

App Layer

DI modules, wiring, and infrastructure services:

• Modules — each implements IModule from orkos (config, database, HTTP, etc.)
• Builder — fluent API for assembling the application
• Factory — createApplication() entry point

Authentication

All services integrate with Authup (OAuth2 identity provider):

• Token validation via @authup/server-adapter middleware
• Per-realm permission checks via @authup/access
• Two-phase permission model: preCheck (fast fail) then check (with policy attributes)

Domain Events & Messaging

TypeORM subscribers publish domain events via Redis pub/sub and AMQP (RabbitMQ). AMQP consumers are wired through DI modules:

• Aggregators — react to events from other services
• Components — task consumer workers for background processing

Key Domain Entities

Entity	Purpose
Analysis	A distributed computation task
AnalysisBucket	File storage container for an analysis
Project	User project grouping nodes and analyses
ProjectNode	A compute node assigned to a project
Node	Global registry of available compute nodes
MasterImage	Base Docker images for worker tasks
Registry	Docker registry configuration
RegistryProject	Project within a Docker registry
