Realms
Realms are organizational containers in FLAME Hub that group identity providers, robots, users, roles, and nodes. They are managed through Authup and enforced across all Hub services.
Overview

Each realm is an isolated organizational unit. Resources created within a realm (projects, analyses, nodes) are scoped to that realm. Which realms a user or client reaches is decided per permission by the grant's realm scope, not by the realm they belong to — the master realm is not special.

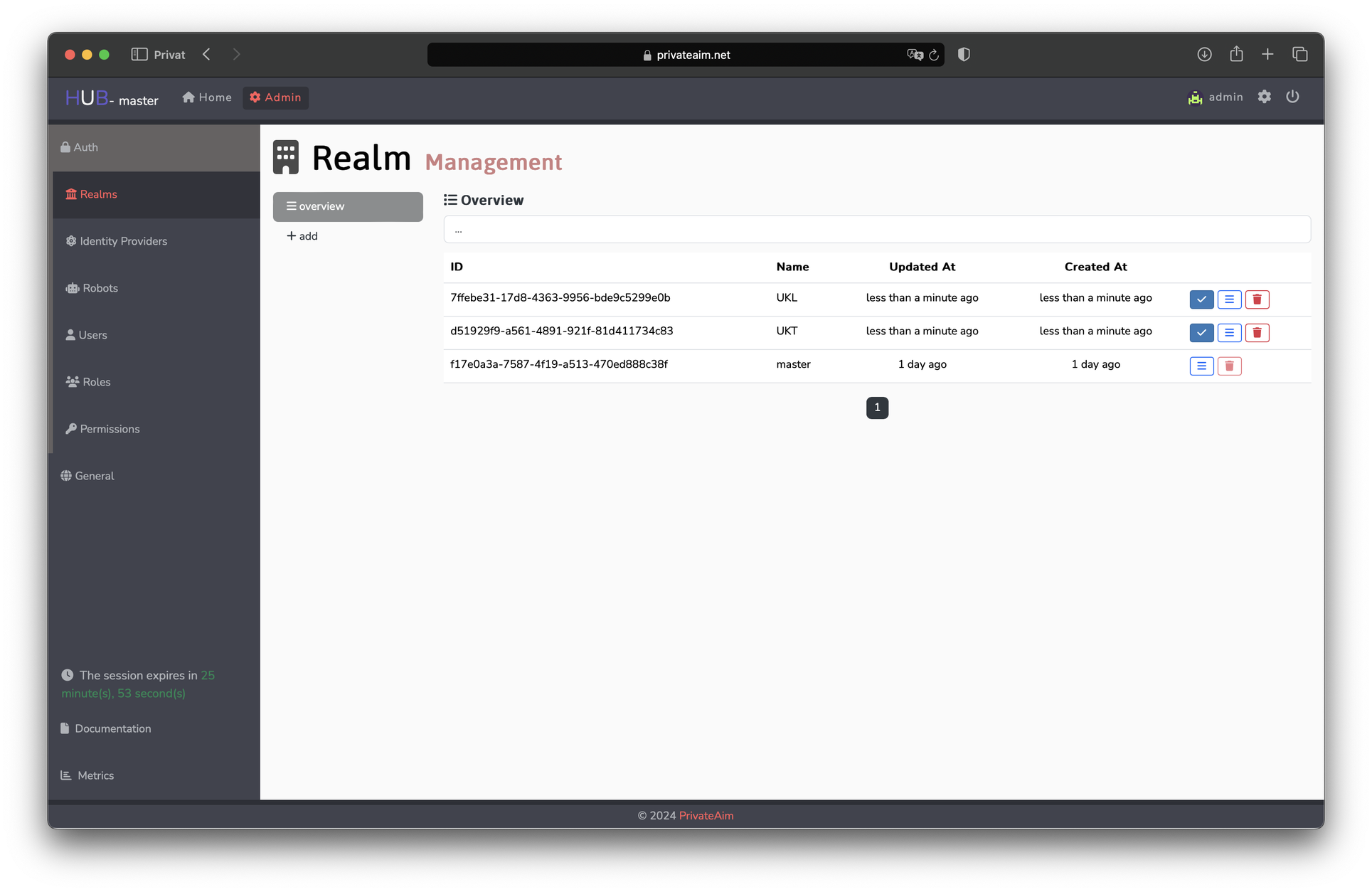

Managing Realms

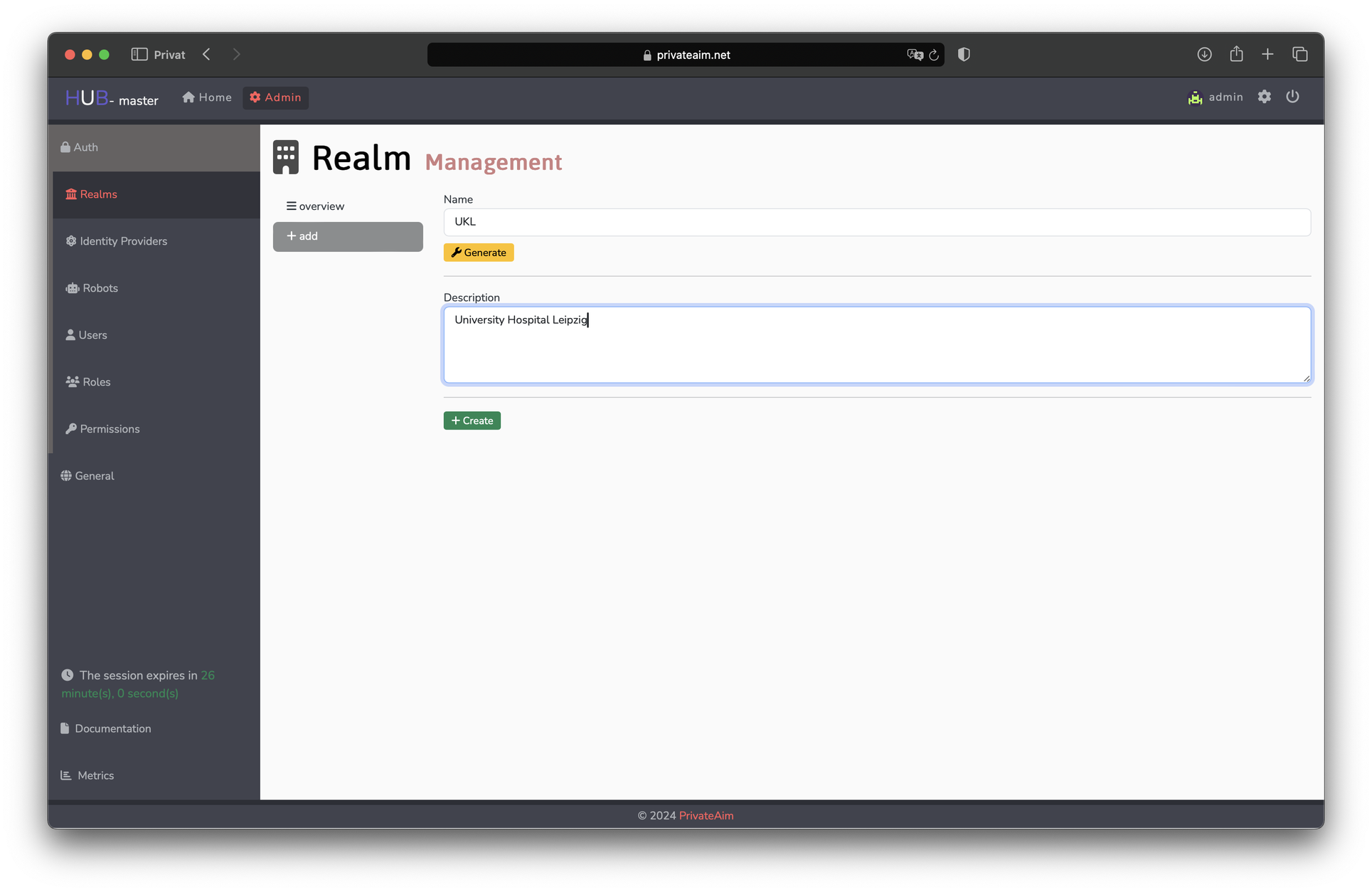

Creating a Realm

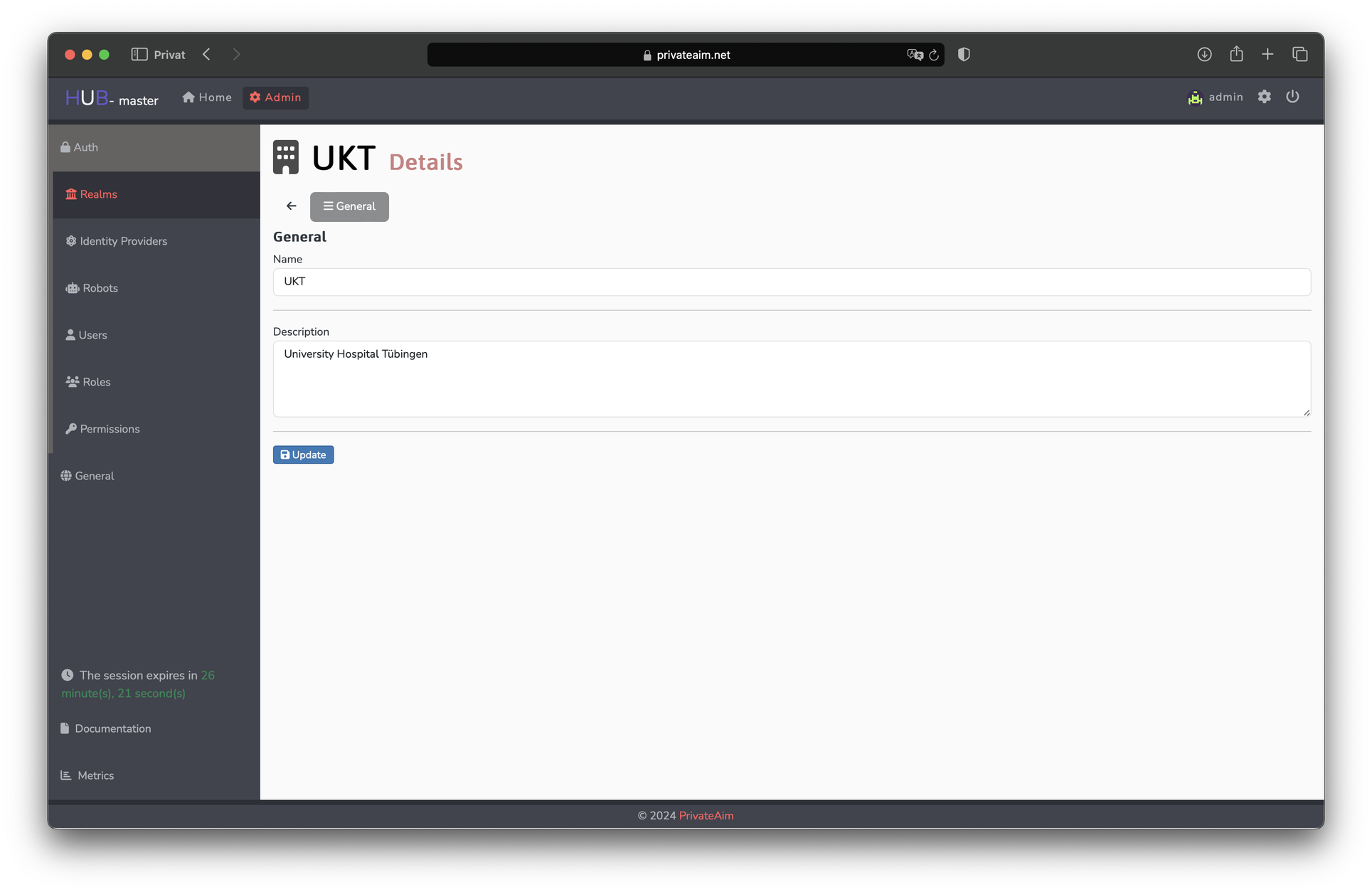

Realm Details

Realm Scoping
All realm-scoped entities carry a realmId property (the realm_id column). Every permission a role or client holds is granted with a realm_scope, and that scope decides which records the permission reaches:
any → every realm, and records without a realm
ownOrNull → the holder's own realm, and records without a realm
own → the holder's own realm
none → no realmThe built-in admin role and the system client hold their permissions at any. A record out of reach answers 403 on a write; reads only return what is in reach. Analyses add participation on top: the realms of an analysis' nodes reach it too (see Analyses).
Users

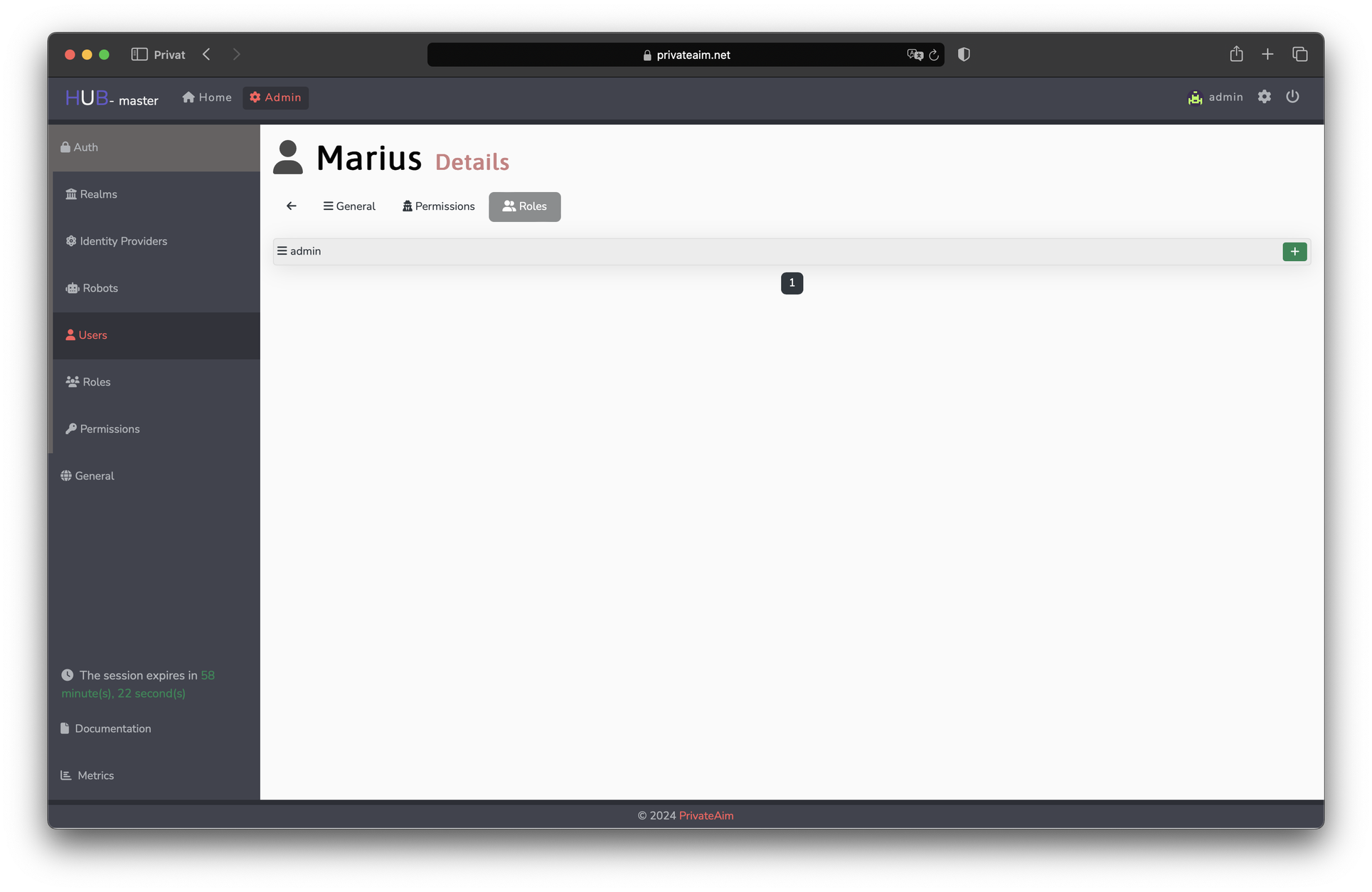

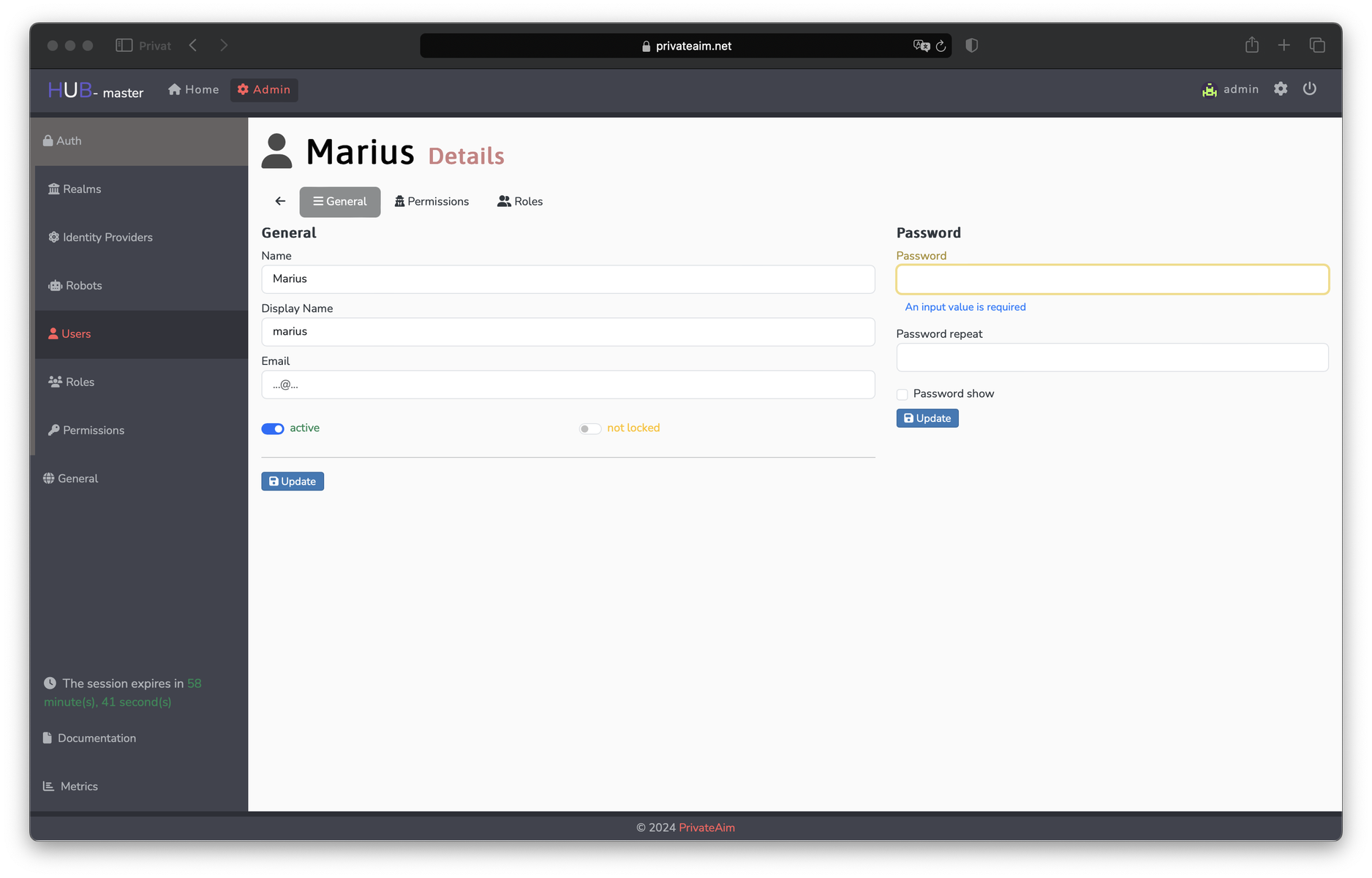

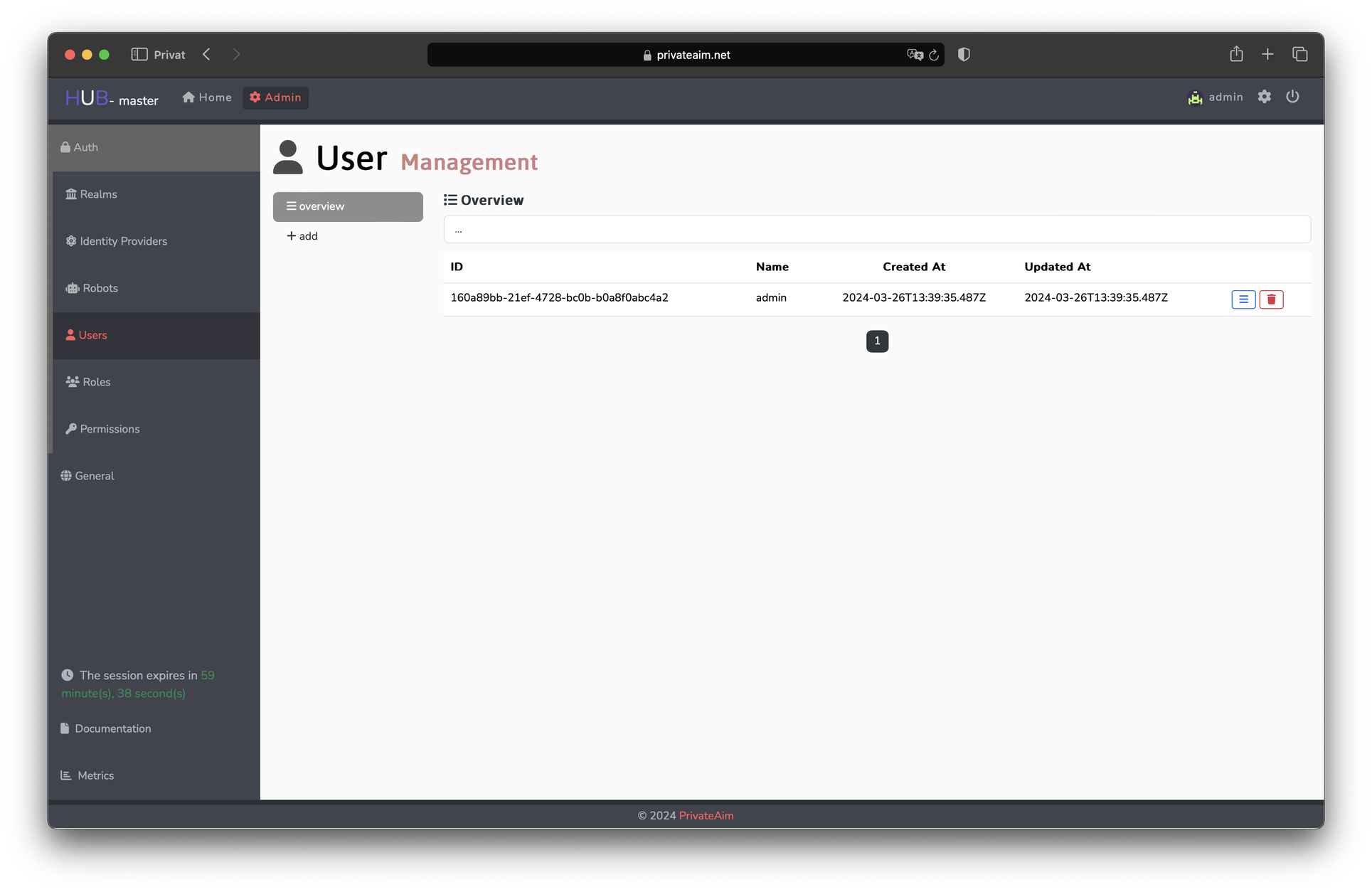

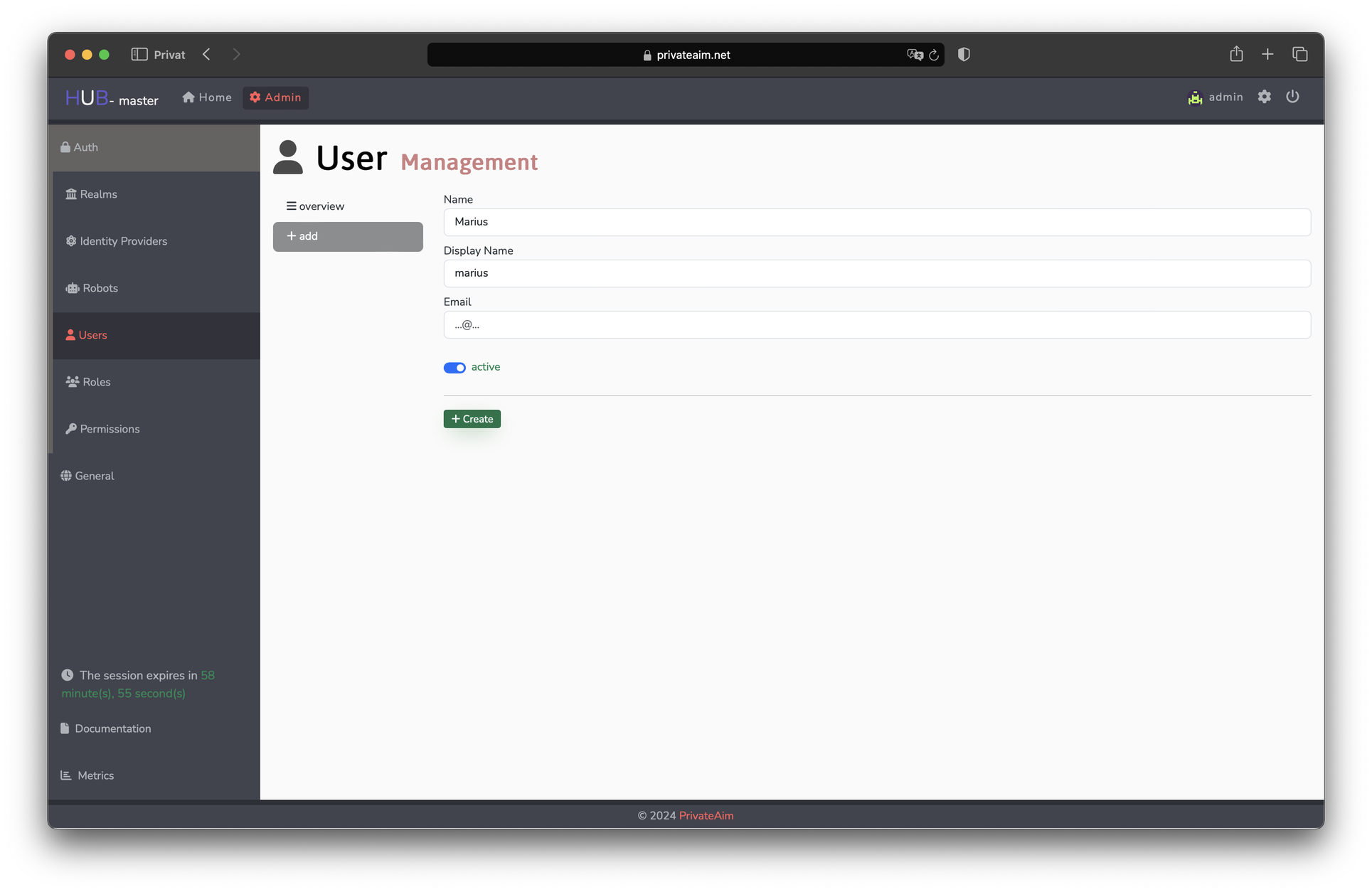

Users are human accounts within a realm. Administrators can manage users, assign roles, and view details.

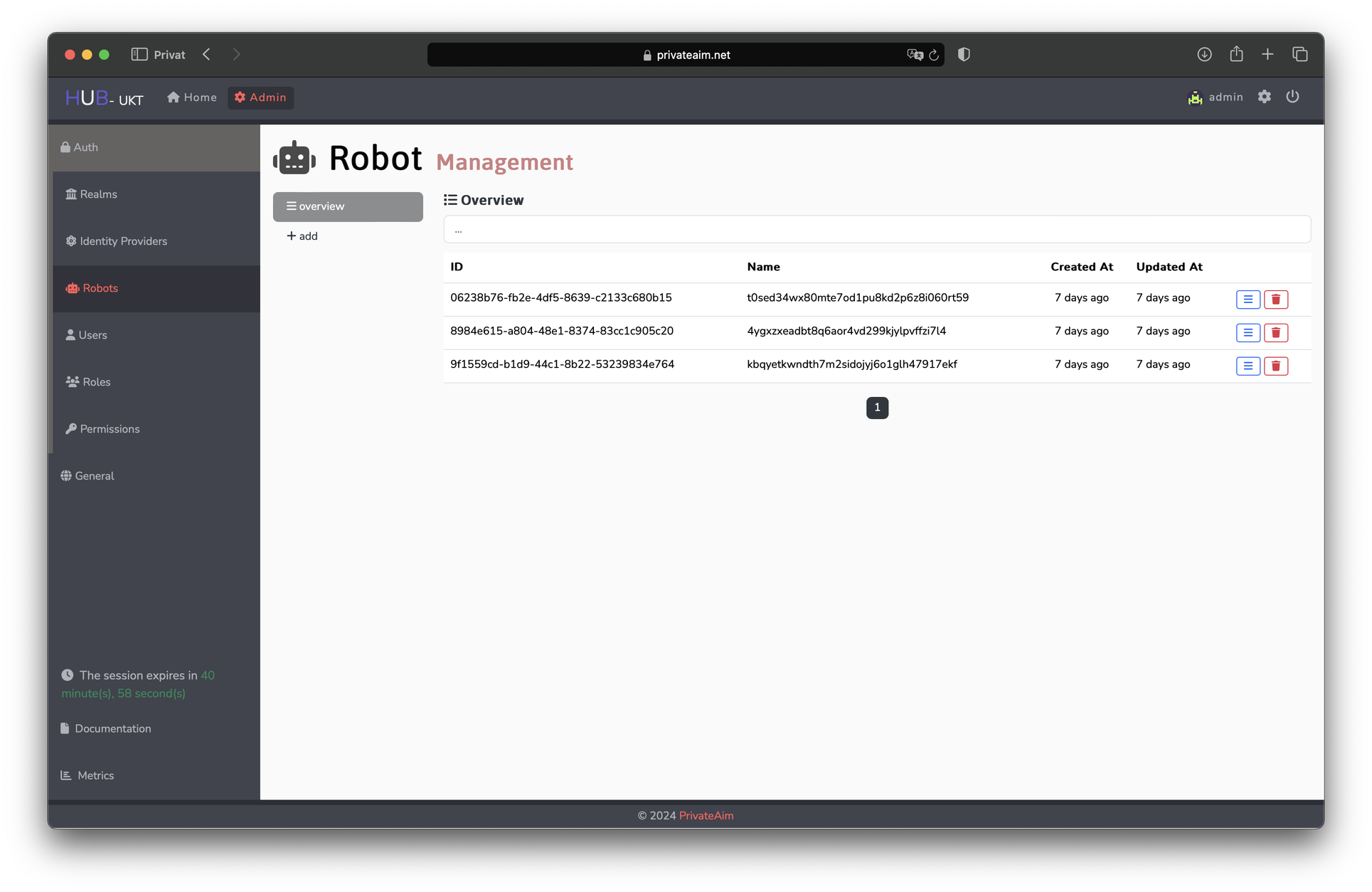

Robots

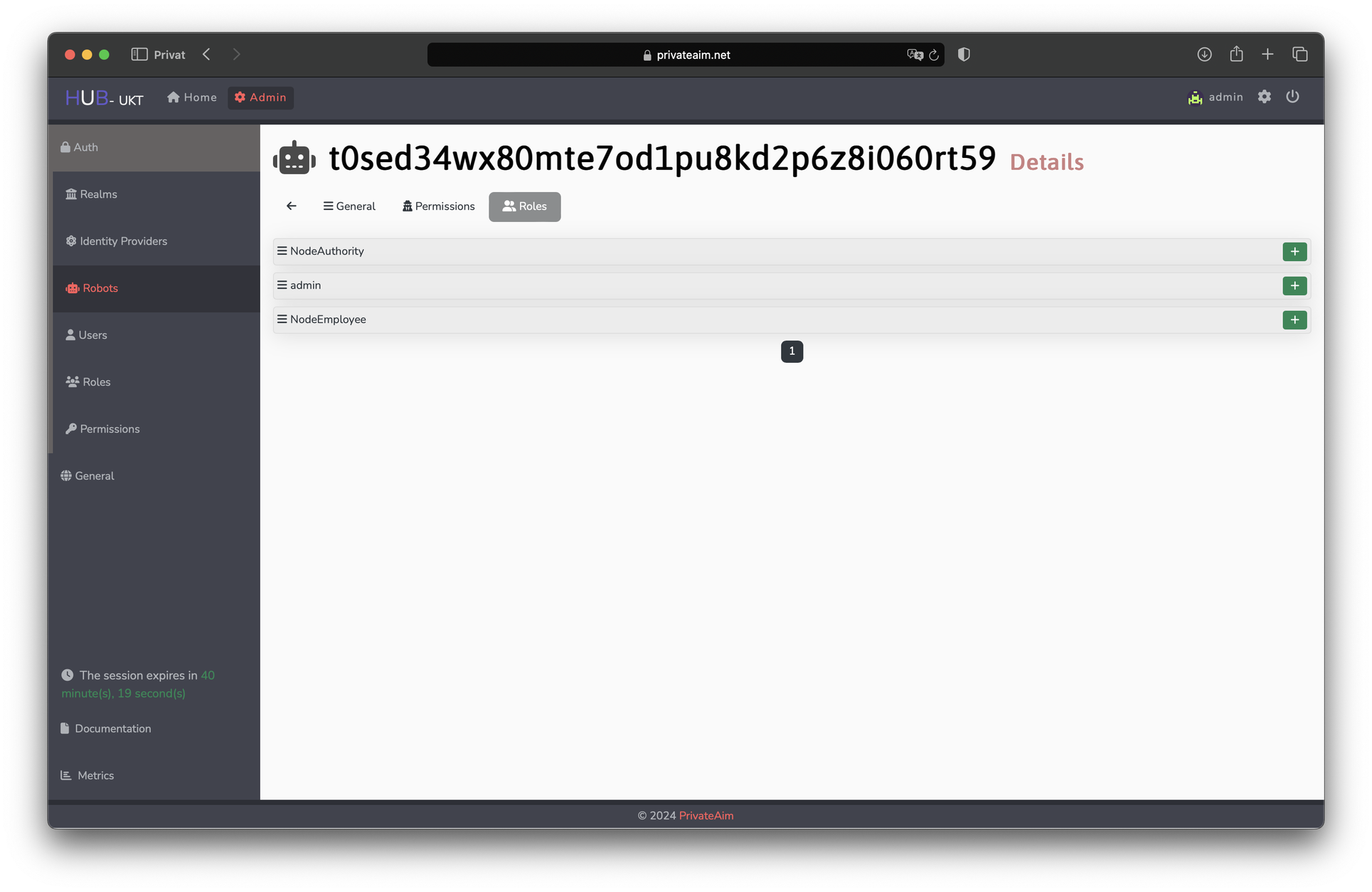

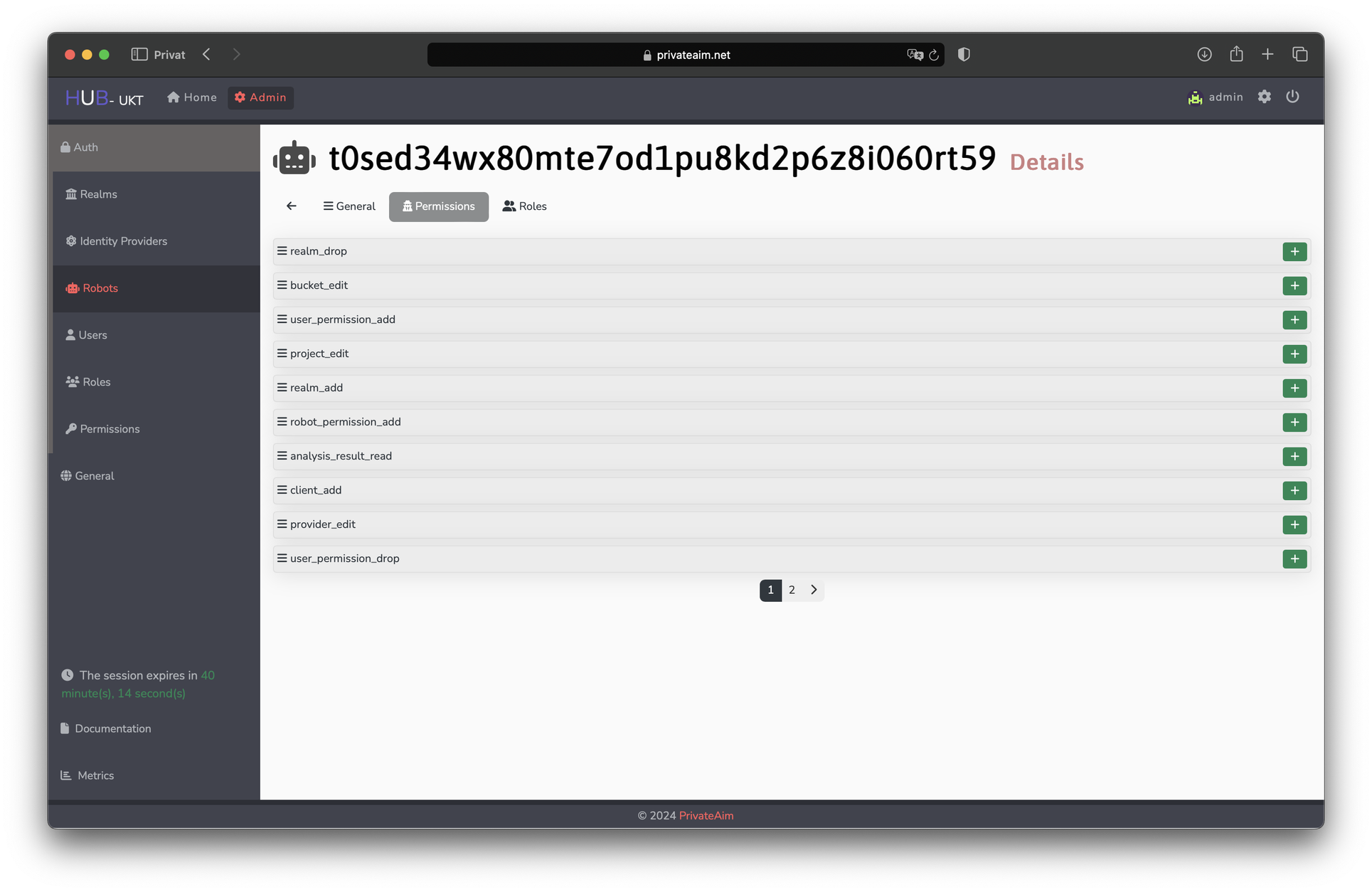

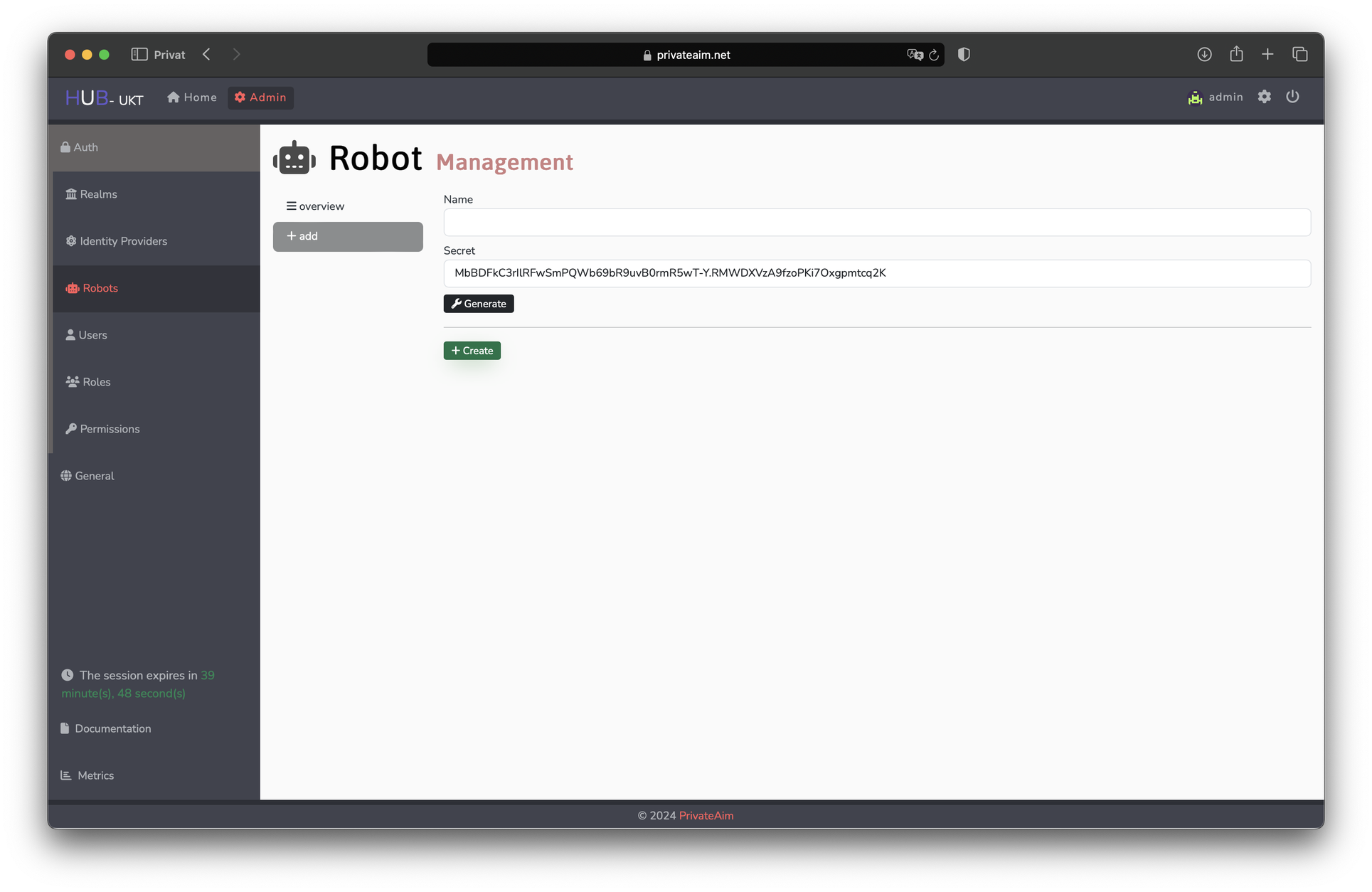

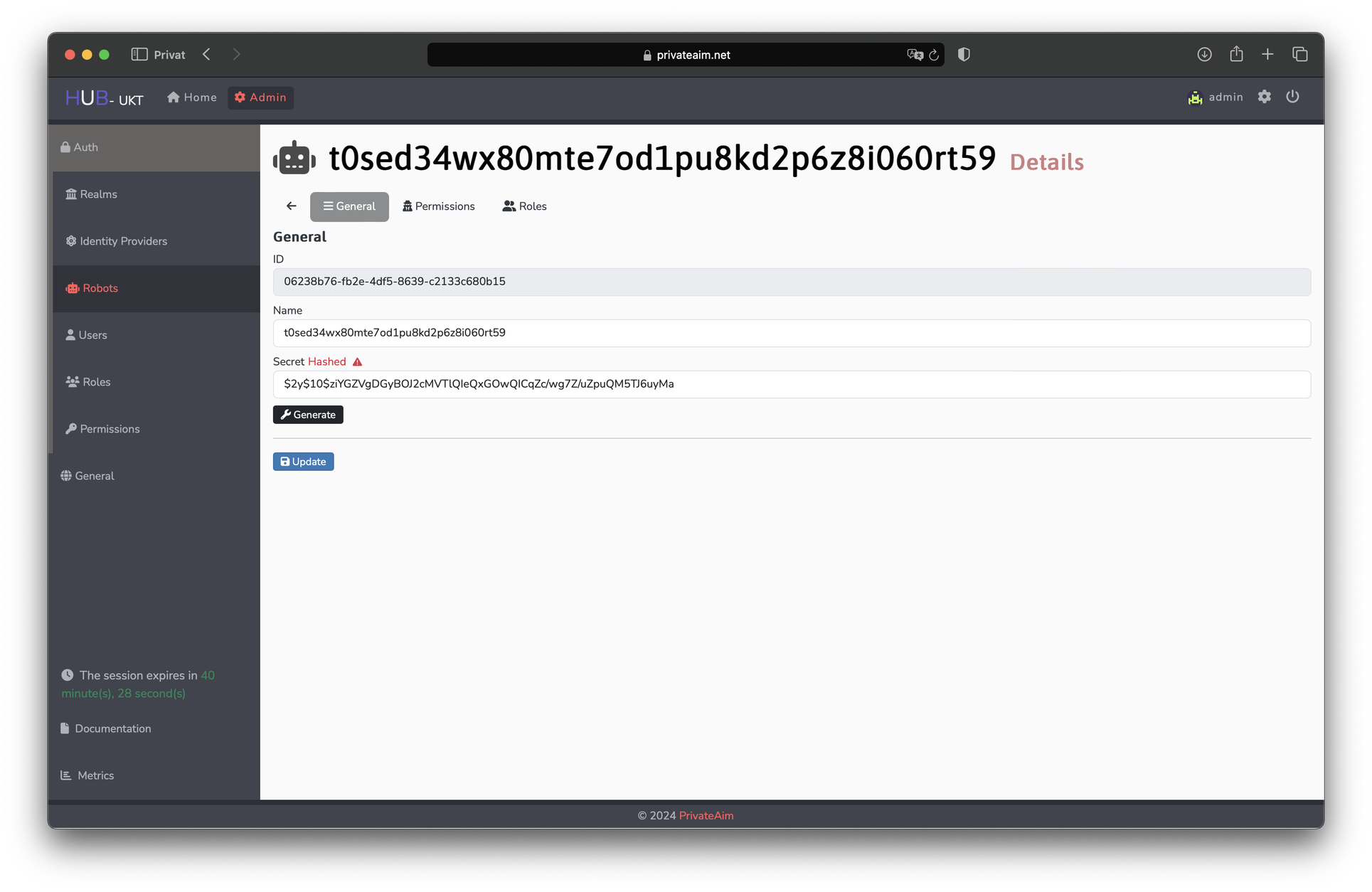

Robots are API pseudo-users for automation. They belong to a realm and are assigned roles and permissions just like human users.

Use robots for:
- Automated pipelines that interact with the Hub API
- Service-to-service communication
- CI/CD integrations

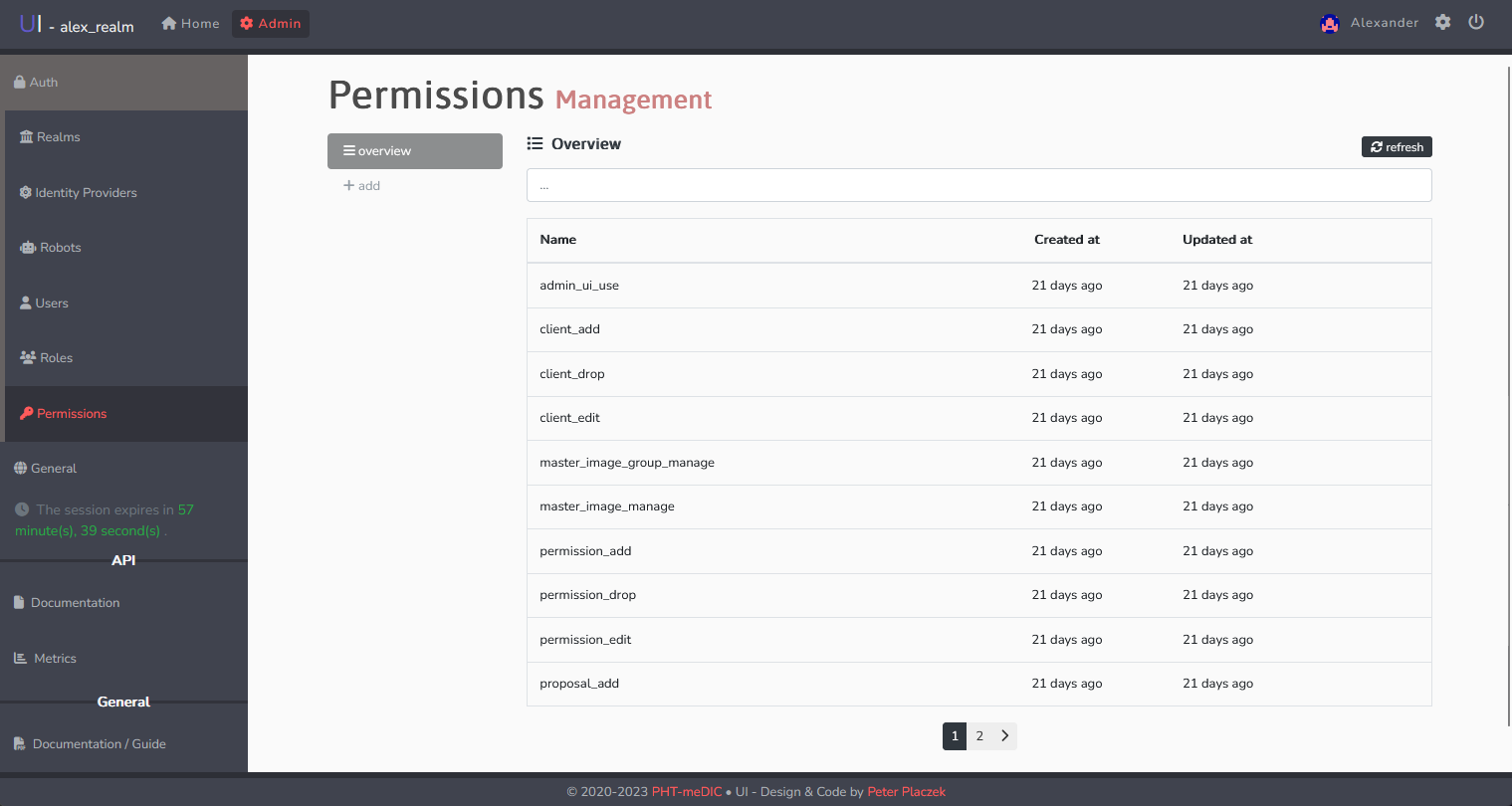

Roles & Permissions
Hub uses role-based access control (RBAC) via Authup:
- Roles group related permissions and are assigned to users or robots within a realm
- Permissions are pre-defined actions (e.g.,
node_create,analysis_update) checked at the service layer - Two-phase permission model:
preEvaluate(fast fail) thenevaluate(with policy attributes)

Identity Providers
Each realm can configure OIDC identity providers for federated authentication. Users authenticate through their realm's identity provider, and Authup maps the external identity to a Hub user.
